LJWBQJ-1800 Automatic Horizontal Glass Washing and Drying Machine
LJWBQJ-1800 Automatic Horizontal Glass Washing and Drying Machine used for cleaning and drying the upper and lower surfaces of ordinary float glass and high quality low-e glass, it is composed of incoming segment, washing air-drying segment and out going segment.This type glass washing and drying machine always using for single glass or insulating glass processing of window and door filed...
- Vendor: LIJIANG Glass
- Shipping:
Learn More
Auotmatic Adjustable Temperature and Conveying Speed Glass Washing and Drying Machine
with Hot Press and Heat Sealing Function
Product Description

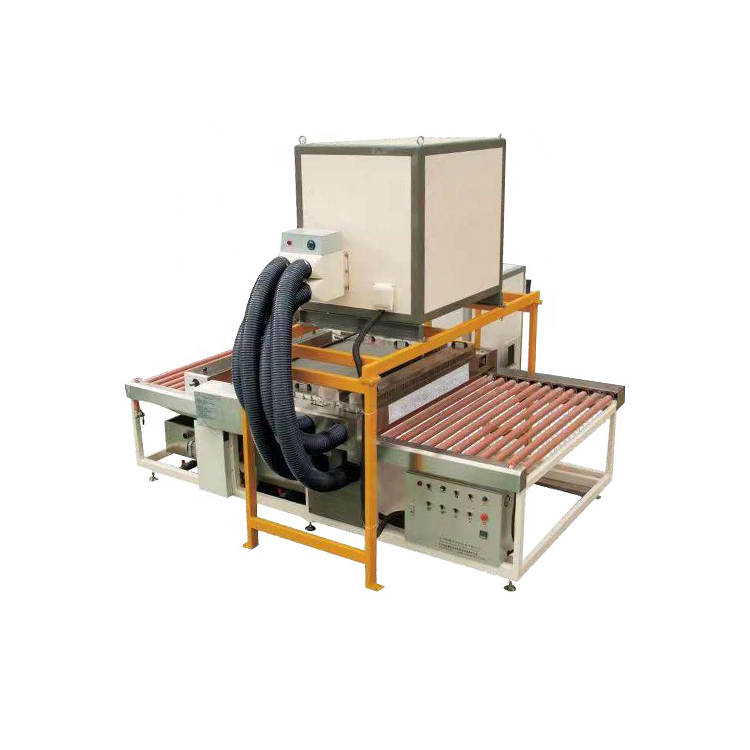

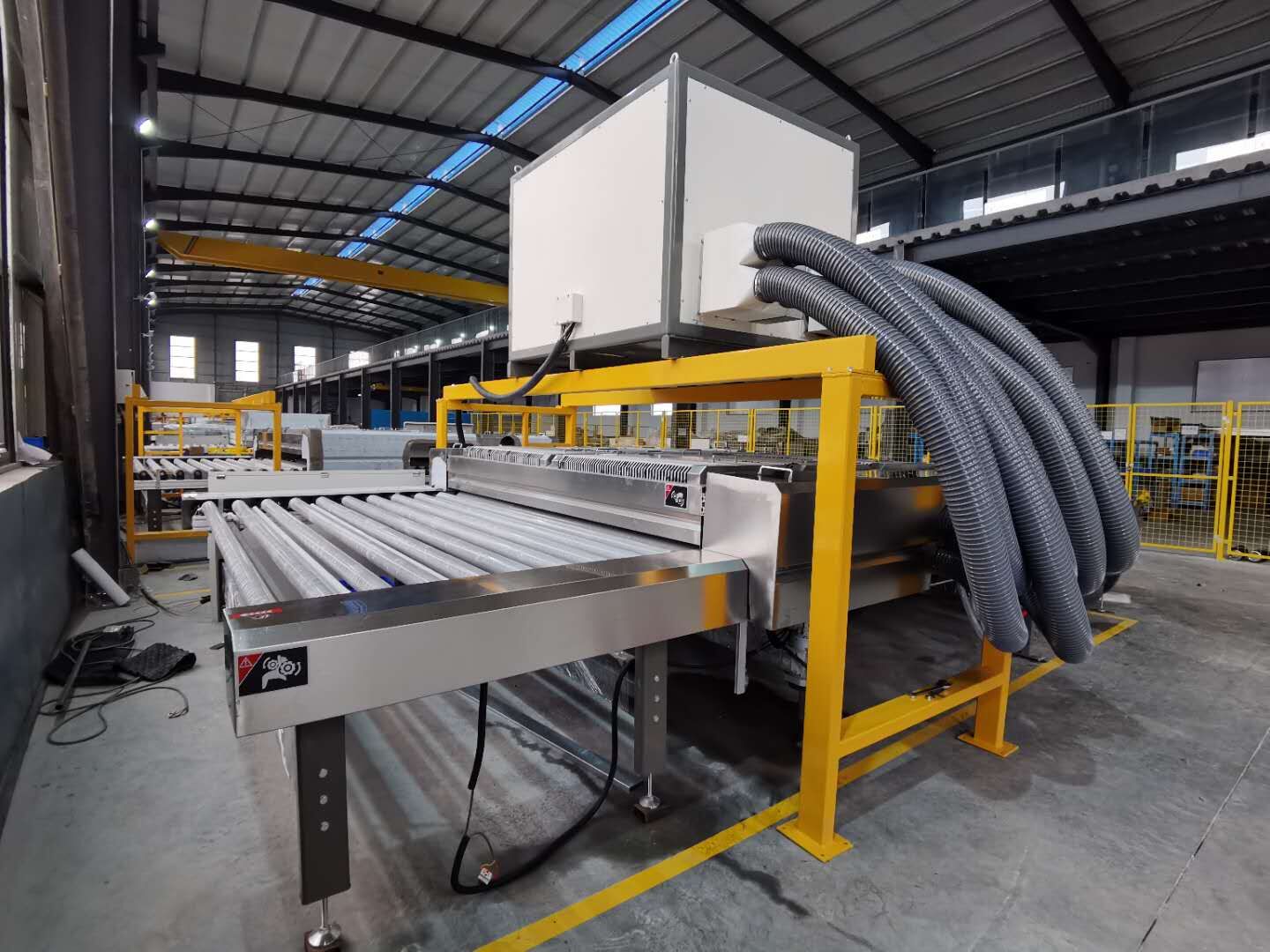

Automatic Horizontal Glass Washing and Drying Machine
Advantages & Features
Structural Characteristics

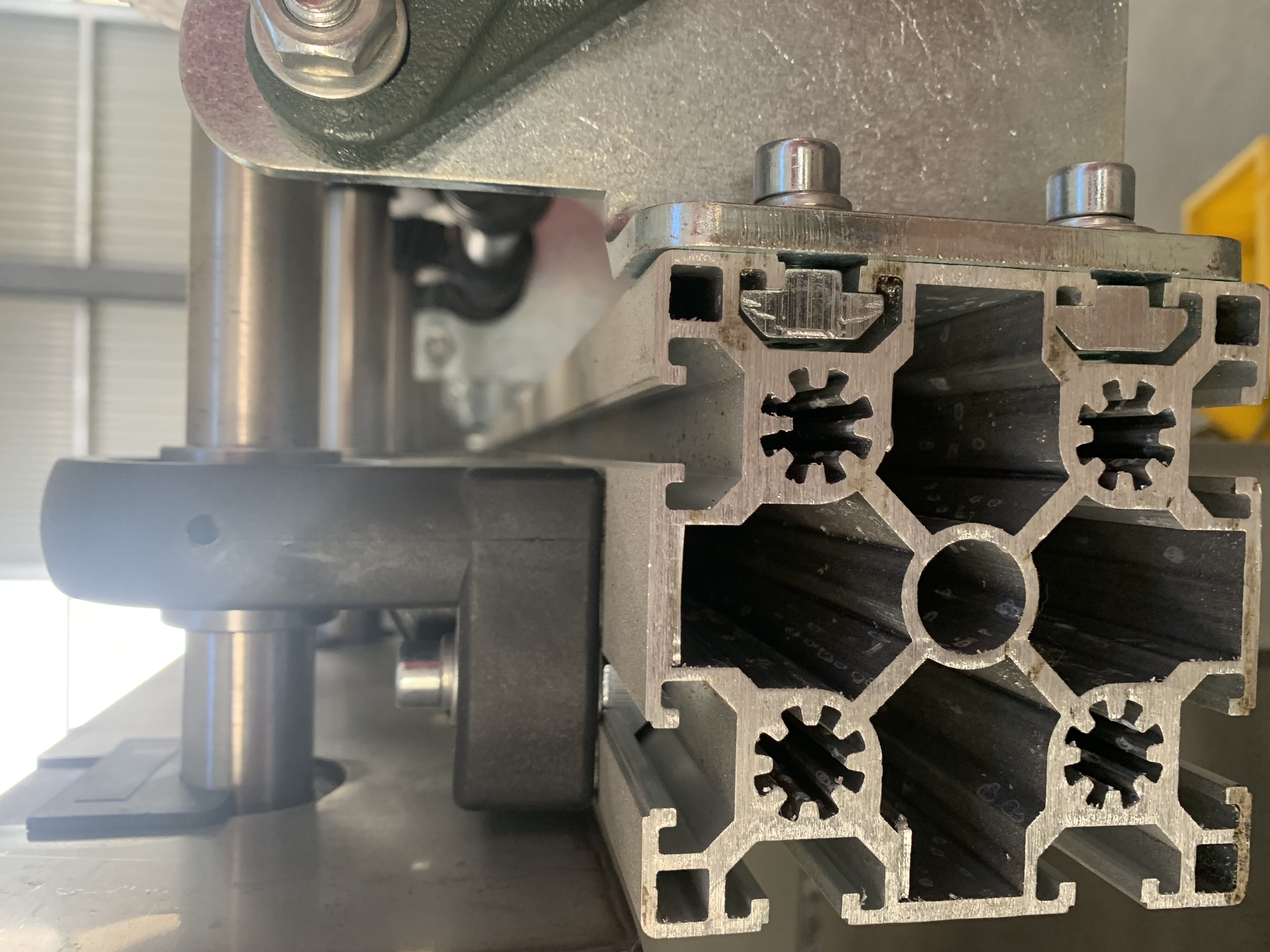

1. Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；

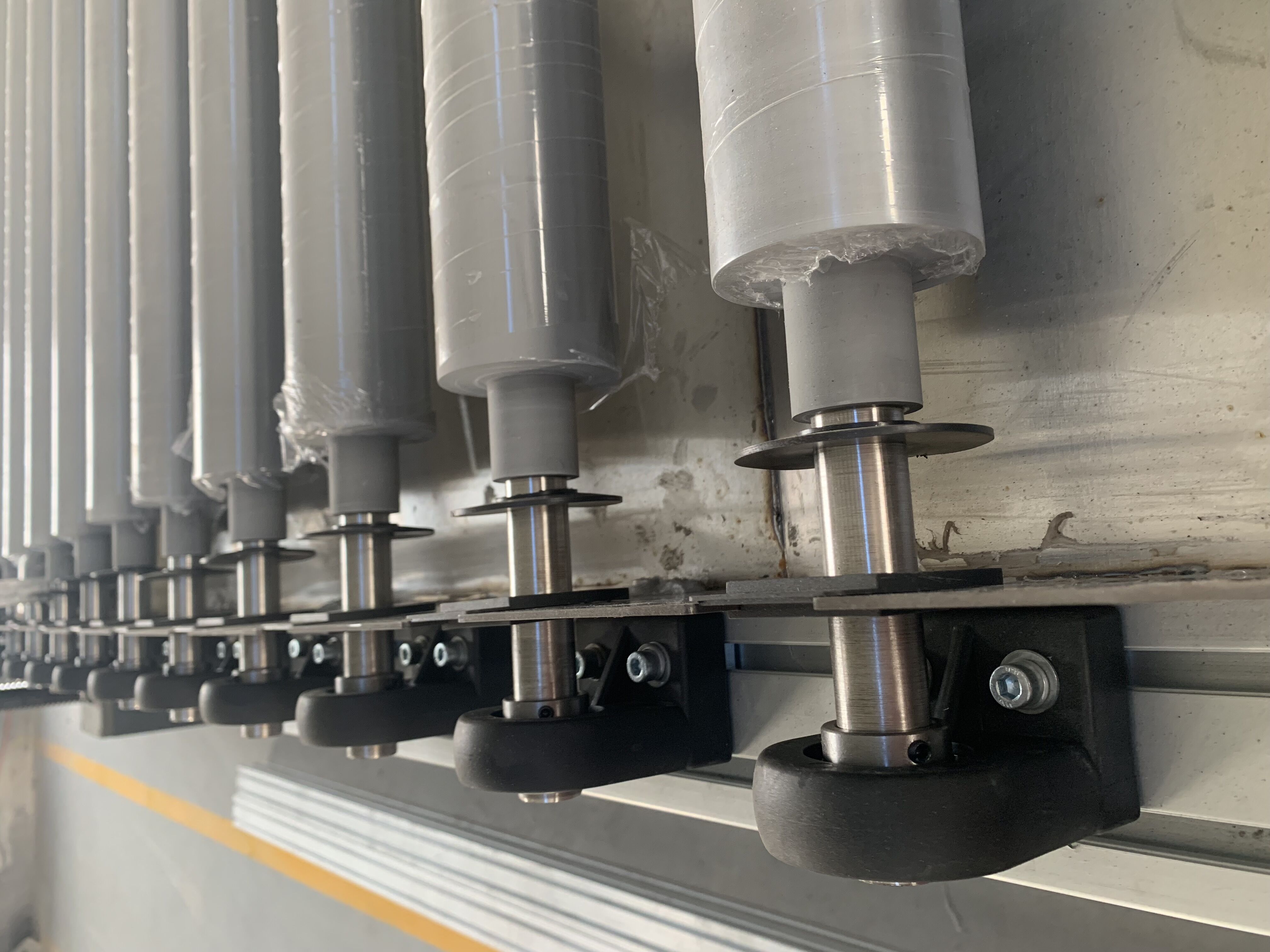

3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift 350mm, easy to clean and maintain；
6. Three pairs of brush（Ø150mm）Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；

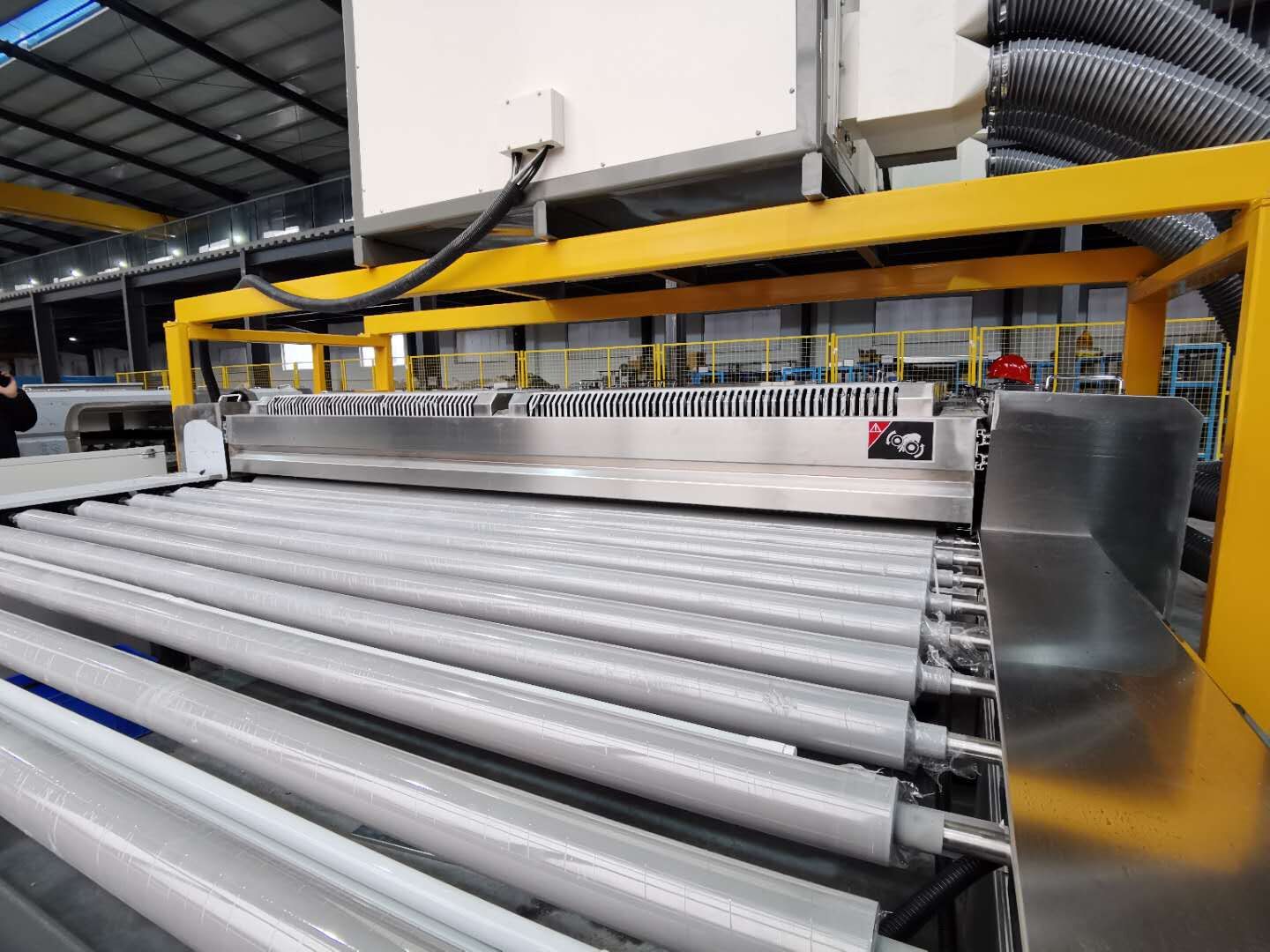

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；

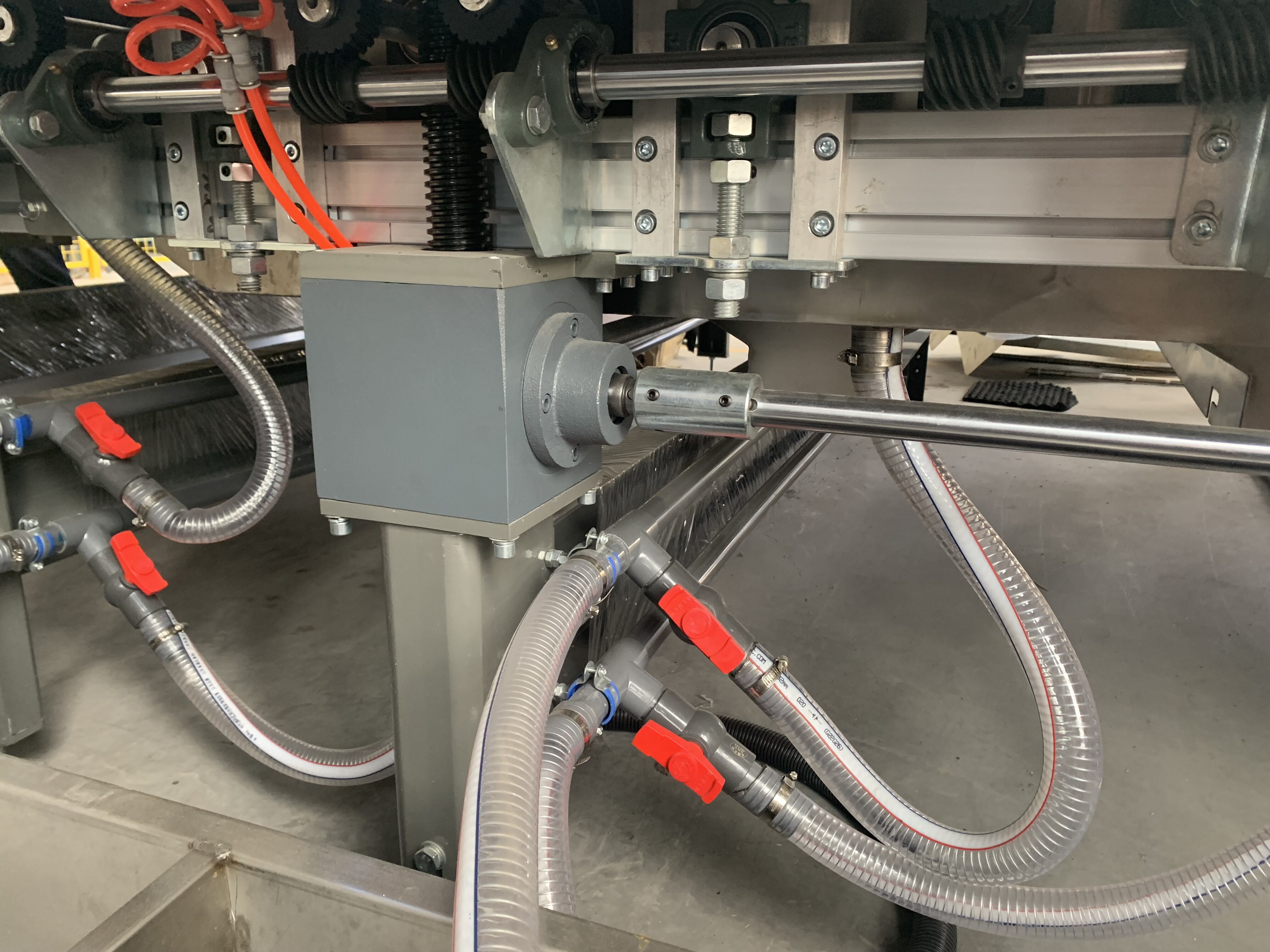

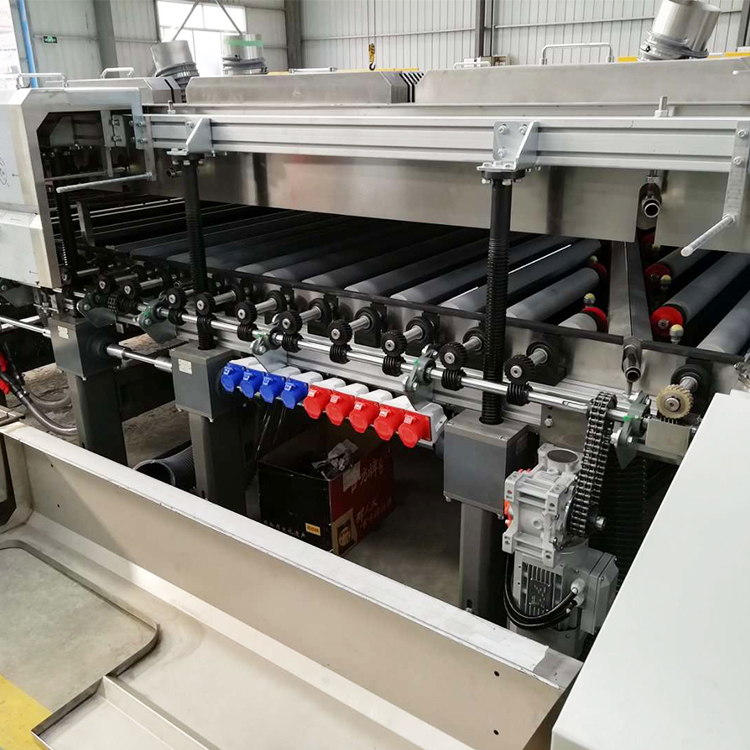

9. Main drive for gear transmission, frequency control, digital display, the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；

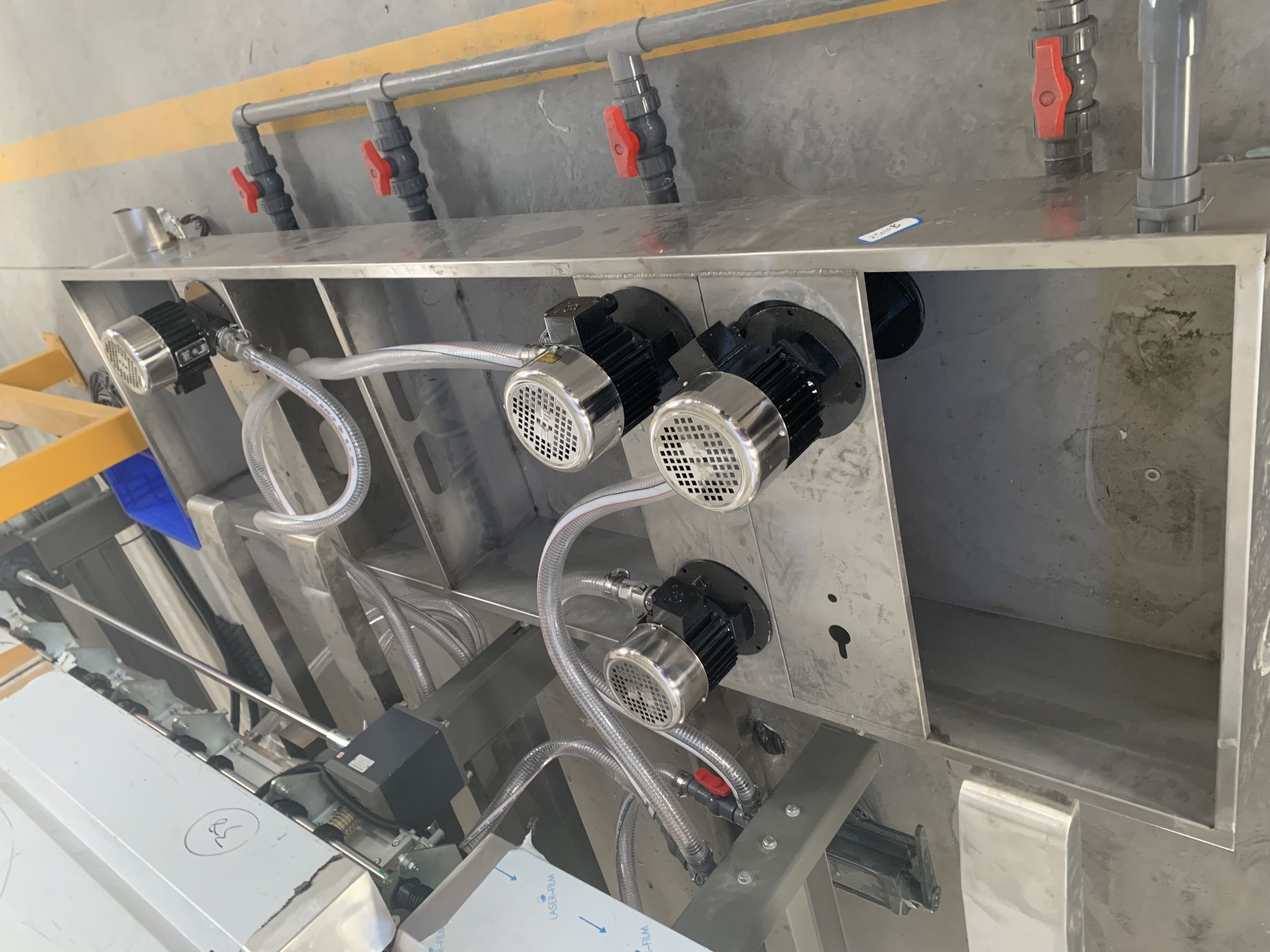

11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

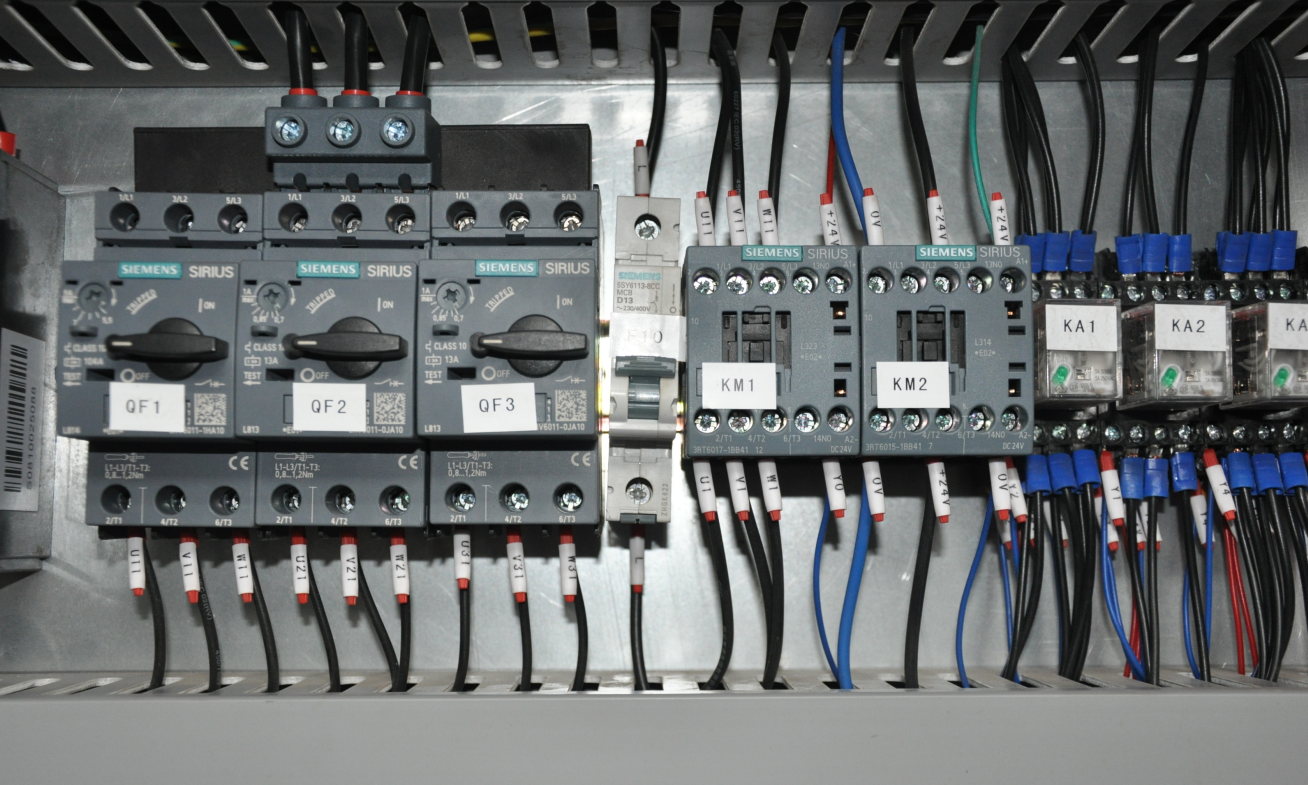

The Imported Components
Using imported frequency converter and PLC control system, the speed of entering and exiting the glass can be adjusted freely, and the processing of clear glass can be maintained at a constant speed for a long time.

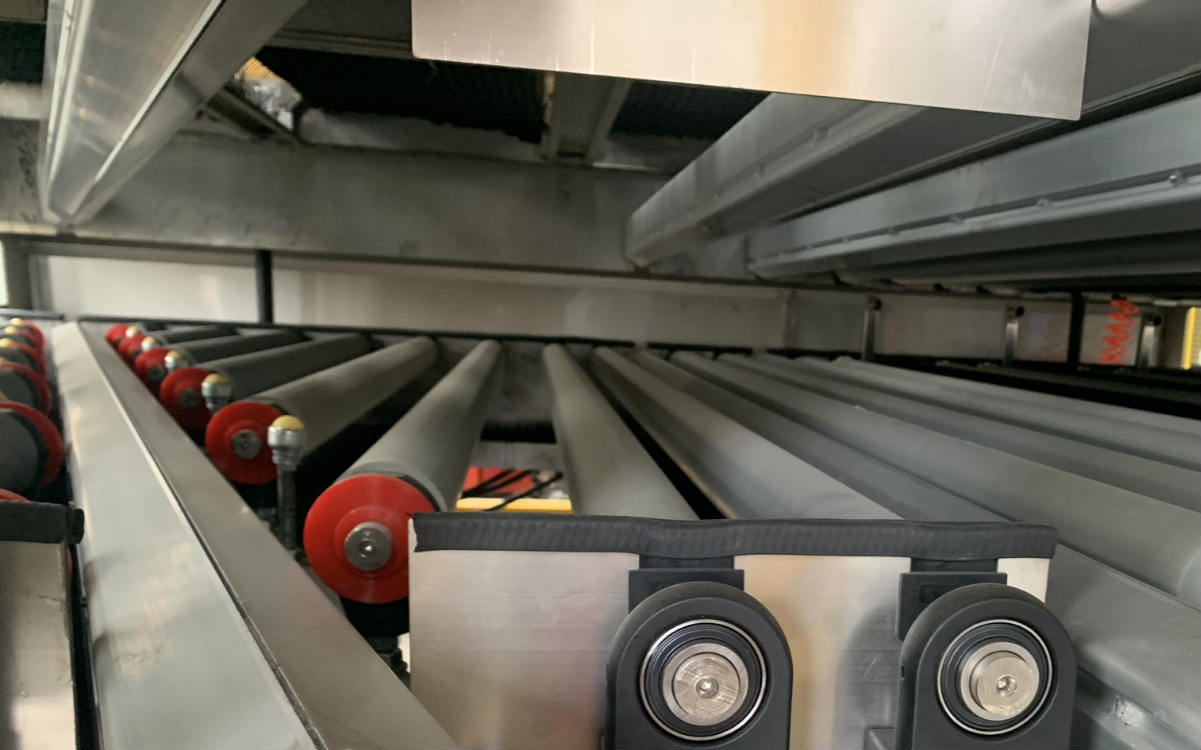

The 3 Pairs of Rubber Rollers
3 pairs of rubber rollers are used to press the glass sheets, which can achieve the effect of increasing the pressing strength in sequence, and the glass thickness tolerance is smaller than others suppliers.
The High-power Fan
The washing and drying equipment could be equipped with a high-power fan, the drying effect is better, and the cleaning effect of the glass is fully guaranteed.
The Gradient Pressing Method
According to the direction from the glass input to the output, the glass is gradually pressed by using a gradient pressing method.The pressing effect is better than other suppliers.
Specification
Item. | Spec. |
Maximum glass width | 2500mm (effective maximum: 2650mm) |
Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
Glass thickness | 3mm-25mm (digital display) |
Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
Main drive, brush speed regulation method | frequency control |
Table height | 900±25mm |
Total power | 42KW(water-bearing wind heating: 15KW) |
Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment |
Power source | 380V 50Hz |
Dimensions (length × width × height) | approximately 6260*4800*3100mm |
Weight | 3940kgs |
What are the defects that are prone to occur during the glass washning and drying?
(1) Edge burst: The transmission and clamping system problems cause the glass to collide in the washing machine.
(2) Scratches: There is broken glass under the washing machine and stacked sheets are stacked during operation.
(3) Unclean: the water tank is not changed in time, and the water quality is not clean; too much glass powder is stained on the brush; the air-drying section is not filtered or the filter is not clean, and the dust content is large.
(4) Blowing is not dry: the air volume and air pressure are not enough, and the air knife or blowing angle is not suitable.
How to prevent the glass from being stuck in the horizontal glass washing machine?
(1) Do not put glass exceeding the thickness limit of the washing and drying machine.
(2) When loading the film, the distance between the glasses should be large enough.
(3) Do not clean the area smaller than the minimum size specified by the equipment and the roller brush. If the glass is stuck or abnormal, stop the machine immediately to eliminate it.
(4) When the washing narrow and long glass or glass with small sizes, the long side should be placed along the forward direction.
