LJLQ-1600 Vertical Glass Washing and Drying Machine could wash max glass of 1600 mm * 2200 mm, which machine is suitable for deep processing of small format glass, more large size and less size of flat glass washing could be optional.

Color: *
Updown flies about your requirement.: *
Please describe your requirements in here.: *

Learn More

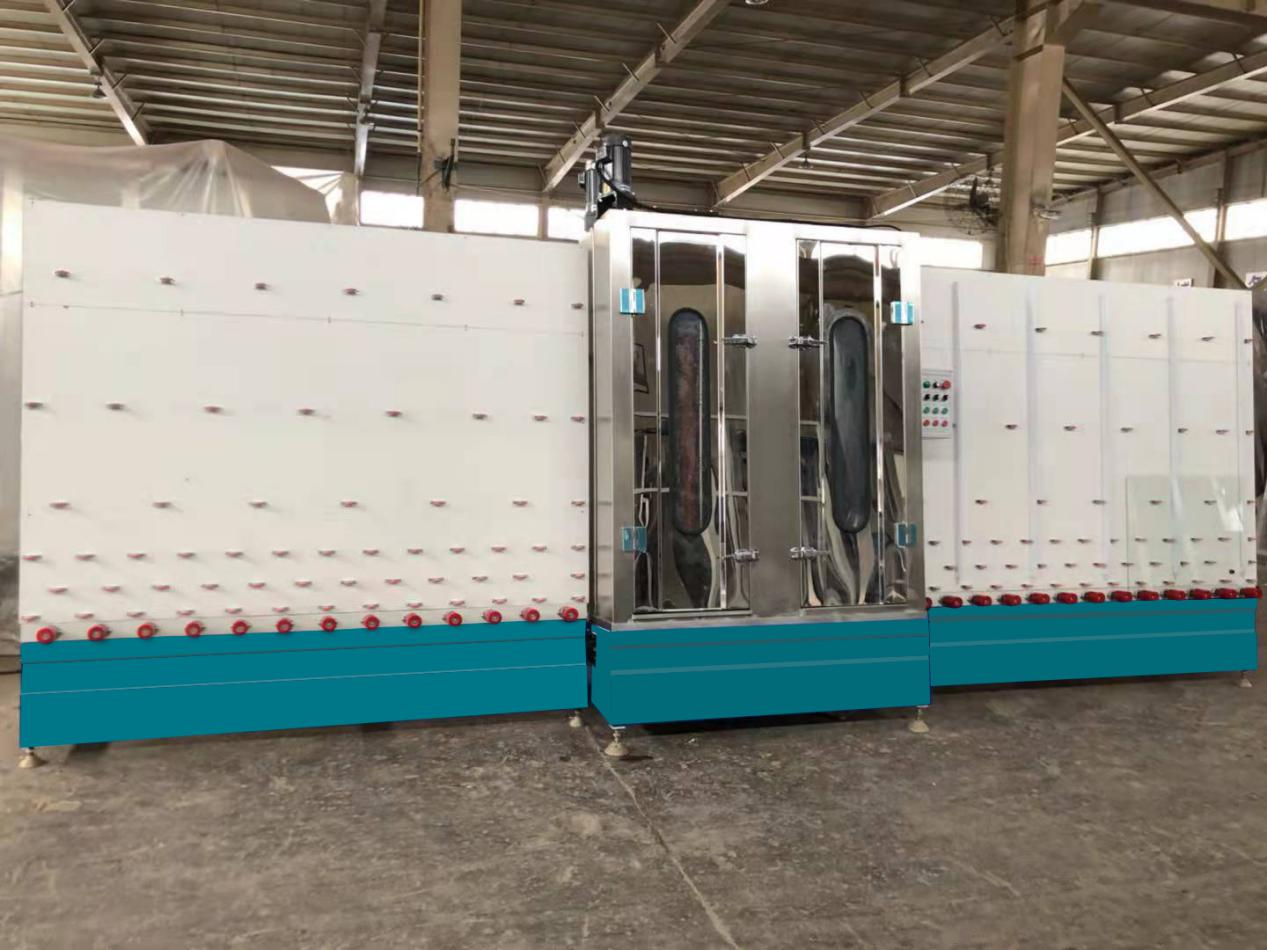

LJLQ-1600 Vertical Glass Washing and drying Machine

Features and Advantages

1. All bearings are all-steel bearings and rotate flexibly without noise.

2. All conveying shafts are processed by a grinding machine, The accuracy of the shaft is guaranteed, and high-quality bearings are equipped, so the glass moves stably and at high speed.

3. The conveyor wheel is made of polyurethane, which is wear-resistant and low noise.

4. The washing body is made of thickened stainless steel, The parts and screws in contact with water are stainless steel or waterproof aluminum, No rust after long-term use, and Convenient maintenance.

5. The washing machine adopts a whole rubber roller drive, According to the thickness of the washing glass, the spring is used to automatically adjust the distance between the two rubber rollers, 3-12 mm glass can be cleaned.

6. Using a high-quality 1010 nylon wire brush and three sprays, the glass is cleaned quickly, with a speed of 8-12 m per minute.

7. Air knife in drying box, the backrest frame is made of stainless steel, avoid secondary pollution after cleaning.

8. Reasonable air knife angle design, making the glass dry better.

9. Unique circulating air design, Glass air drying system is energy-saving and low noise.

More Equipment Details

The surface of the washing and drying case and water tank is made of double water tank impermeable steel wire drawing board, and the room is cleaned to ensure that the glass is clean. The conveying glue stick adopts acid and alkali resistant full rubber roller, which can automatically adjust the spacing according to different thicknesses of glass. Three pairs of brushes are equipped with high-pressure water sprayers, and all brushes are made of soft high-temperature wires to prevent damage to the surface film of the coated glass. The washing chamber is covered with a plexiglass water baffle, which is easy to disassemble and easy to maintain. When the chassis of the washing section is working, the transmission and washing of the glass can be directly seen through the glass.

During the washing function, the water is pumped out from the water tank by two water pumps, sprayed onto the glass surface through the nozzle of the spray water pipe, cleaned by the brush, and then returned to the water tank for recycling. The rinse tank is equipped with a water heating device, which can heat the water for reuse at low temperatures. If the water quality is poor, the user needs to be equipped with a water treatment device. After water treatment, the water enters the rinsing water tank and is recycled according to the above steps.


Pre-Sales Service

1. Free inquiry and consulting support.

2. Free sample-making support.

3. Manufacturing process inspection.

4. Free quotation.

5. Troubleshooting.

After-Sales Service

1. Offering the specifications for the entry-level glass deep-processing machine with 1 years warranty.

2. English software, user manual, and engineer guide.

3. 7/24 technical support by email or call, if you have any problems, we will help you to solve them within 12 hours.

4. During the warranty period, if any part is broken, we will provide it for free.

5. Free remote service and support, if it is necessary, our engineer will come to your country for training.

6. 7 working days to produce the machine, in the meanwhile, we will report the production process in time.


1. Is it easy to operate for a beginner?

We provide an English manual or live video guide that will show how to set up and use the machine. Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.

2. How to choose the right entry-level glass deep-processing machine?

Yes, to give you a suitable entry-level insulating glass producing machine, please tell me the max working area, materials for processing, and the thickness for the materials to be cut. Then an affordable glass deep-processing machine will be recommended to fit your requirements.

3. If the glass deep-processing machine have any problem after I ordered it, what could I do?

3.1. Free parts will be sent to you in the warranty period if the machine has any problem.

3.2. Free after-sales service life for the machine, please feel free to contact us if you have any problems.

3.3. We will offer 7/24 free service and support by phone, WhatsApp, skype, and mail.

4. What about quality control?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure it can work very well before being out of the factory. The testing video and pictures will be available before delivery.

5. What about the MOQ?

Our MOQ is 1 set glass deep-processing machine. We could send the glass deep-processing machine to your country port directly, please tell us your port name. There will be the best shipping freight and machine price for you.

6. What about the payment terms?

6.1. 30% by T/T in advance, 70% by T/T before shipping.

6.2. L/C is acceptable, if the amount is big, please issue the draft for our confirmation at first.

7. What about the delivery terms?

We will arrange the delivery on the terms we both agreed upon after the confirmation by the buyer. For standard machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depending on the factory arrangement.

8. What about the packing?

Waterproof plastic film package with foam protection in each corner. Plywood case package with steel belt. It saves space as much as possible for container loading.

9. What about the documents after shipment?

After shipment, we will send original documents to you by DHL which include the packing list, commercial invoice, bill of landing, and other certificates as required by clients.

International Shipping Around the World

All the glass deep-processing machines can be shipped worldwide by sea, by air, or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

Overall dimension
Maximum processing size
Minimum processing size
Original glass processing thickness
Power supply
380V 50Hz
