Automatic Glass Production Equipment

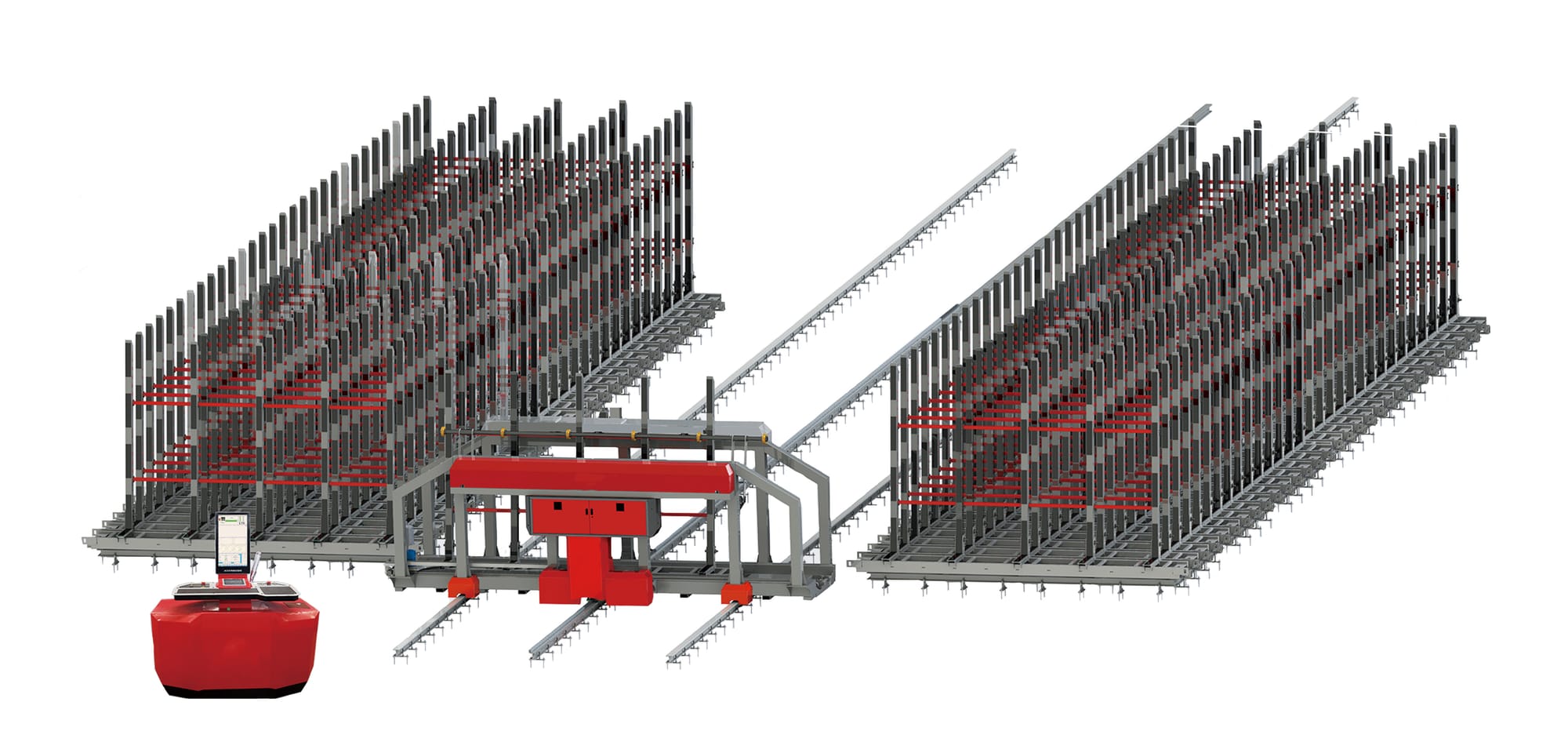

LIJIANG Glass intelligent raw glass storage system is an intensive, diversified, and automated intelligent management system for the raw storage of glass deep processing plants.

Real-time exchange of inventory can be carried out with an ERP data connection, and the glass rack can be automatically retrieved according to the optimization result, and the glass rack can be sent to the loading station. It has independent inventory management and material replenishment functions. During the work, it will be scheduled according to the order situation and the actual working status on site, and the command will be issued to control the car to execute automatically.

Features & Advantages

1. Improve the optimization rate: the use of raw film storage equipment can make the glass in the original film library participate in the optimization at the same time, and the optimization rate of glass cutting can be increased by more than 3%;

2. The system is stable and the positioning is accurate: the walking of the glass base frame adopts the full-closed-loop control system of servo and laser ranging, Siemens control system, and high-efficiency and stable PN communication to ensure an accurate information, no need to return to zero after interrupting the operation, and the walking position accuracy can reach ±1mm;

3. Modular glass base frame: realize quick installation, reduce the impact of ground subsidence, ensure long-term stable operation, and facilitate equipment maintenance. The glass base frame in the storage area adopts a mechanical locking mechanism to prevent safety accidents caused by the movement of the glass base frame.

LIJIANG Glass intelligent glass film sorting and storage system includes horizontal and vertical turning tables, vertical measuring tables, glass shuttle machines, film sorting and storage machines, and vertical and horizontal turning tables arranged along the glass conveying direction. Through the coordination and cooperation of various components, a series of processes such as the horizontal and vertical conversion of glass, specification measurement, classified storage, and on-demand access are completed. The glass size in the process of processing is inspected by the vertical inspection table, and the glass is stored in the corresponding grid frame according to the system requirements. The system takes out the glass in sequence according to the process requirements for subsequent processing.

Features & Advantages

1. The manual handling and classification storage links are reduced in the whole system, which greatly improves the efficiency and yield;

2. Quick inspection, accurate positioning, intelligent classification storage, and intelligent outbound;

3. Optimize space utilization and reduce the space occupied by semi-finished products;

4. Wide applicability. It can be used for storage optimization and classification before edging to improve the efficiency of edging; it can also be used for storage and classification before tempering to meet the loading rate and process requirements of the tempering furnace. It can also be used before hollowing to solve the requirements for the automatic pairing of insulating glass sheets

LIJIANG Glass intelligent multi-layer & ladder horizontal film sorting system is used for glass storage and sorting before edging and tempering. When it is used before edging, the cut glass is sorted and stored according to the size of the edging direction. A single layer can store multiple pieces and supports the function of cross-through and straight-through, and the cut glass is scattered into a whole. When it is used before tempering, as a storage system for the glass to be tempered, it can greatly increase the loading rate of the tempering furnace with the filming table.

Features & Advantages

1. The lifting and lowering transmission of the aerial ladder is stable and reliable, ensuring lifting accuracy and eliminating the risk of the lifting frame falling
2. The unpacking bin adopts a modular design, with 10 layers as the standard module, which can be combined to increase the capacity of the unpacking bin.
3. Program intelligent control to determine the film output sequence
4. Intelligent layer-seeking, fast access, fast and accurate rising and falling movements
5. Software and hardware are independently researched and developed by AMO, which are highly integrated and perfectly integrated to achieve real-time upgrades
6. It can combine the current cutting or breaking of the layout to optimize the sorting before edging, to achieve optimized typesetting and output.
