LJWQ-1600 Automatic Horizontal Glass Washing and Drying Machine

Automatic Horizontal Glass Washing and Drying Machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass, it is composed of incoming segment, cleaning air-drying segment and out going segment.

1. The transfer rubber covered roller adopt gear revolve, stable and convenience maintain, the above and bottom hairbrush roller adopt two motors for transfer motion, stable transfer, the belt are durability.

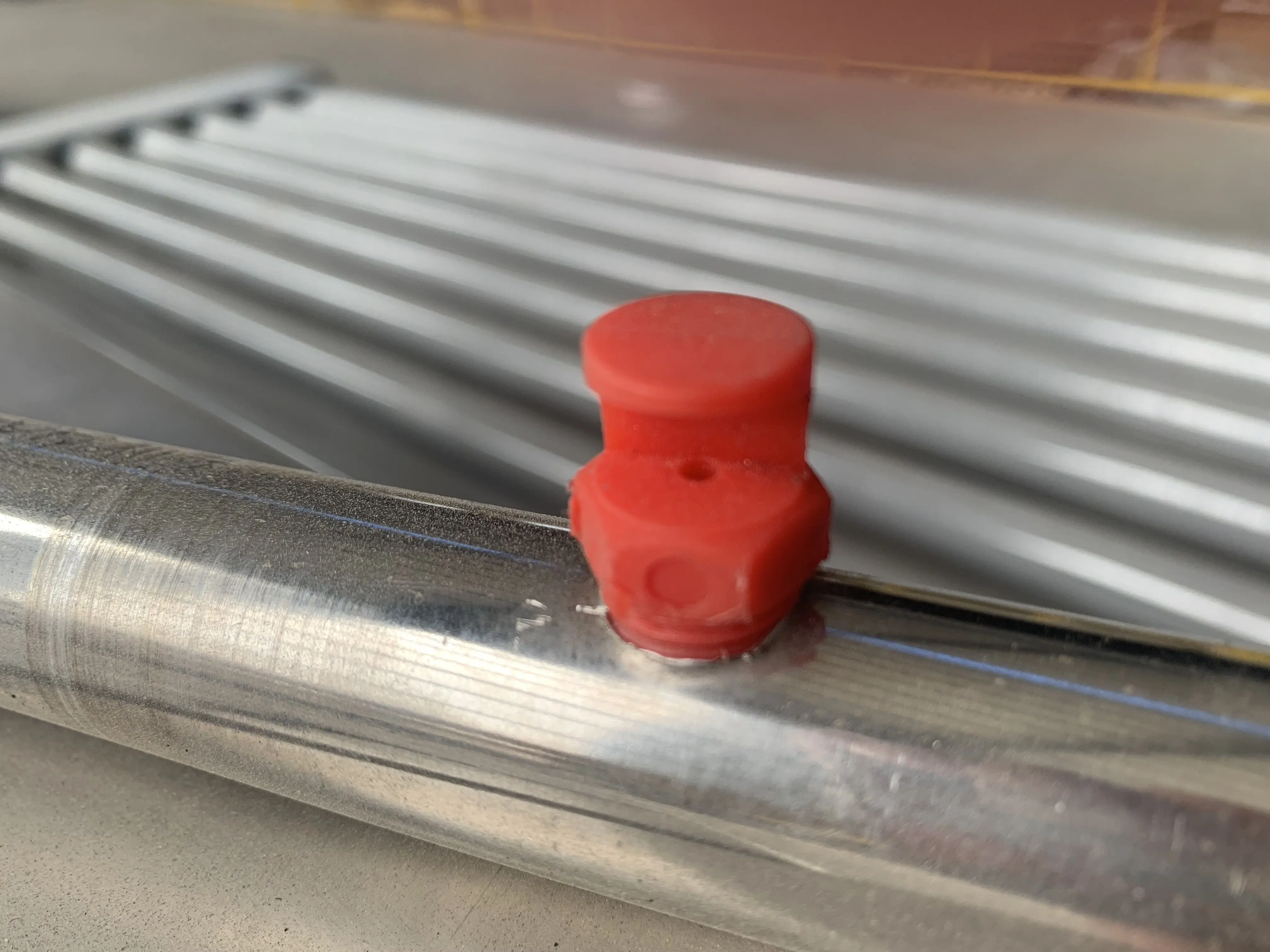

2.The machine top part equip the stainless water dish, transfer rubber covered roller can clean by itself at the revolve process;also with the sprinkler systems can wetting the glass surface before the glass enter the washing part, improve the washing effect.The metal parts of the washing section which are contact with water, all adopt stainless material, with circulating pump, water tank can pull out washing, have three levels washing, when request the higher washing effect, two sets of hairbrush roller at behind have to use running water(purified water can get the better effect).

3.This type of glass washing machine transmission are adopt vulcanized rubber cover roller structure (prohibit acidic liquid get in touch), washing part, drying part whole lifting automatically, the maximum lift range is 400 mm, in order to adapt washing different glass thickness,continence for cleaning and replace the hairbrush.

4. It equips 3 pairs of hairbrush roller(φ 150 mm), can washing the hard Low-E glass, common coated glass and sunshine coated glass, when washing the coated glass, two pairs of strong hairbrush can though the air cylinder raise up, will never hurt the coated surface. 5.Drying part, air drying system equip two pairs of air knife, a pair of straight air knife and skew air knife cooperate application, high pressure blower can completely drying the glass surface, large lateral wind power, good air drying effect.(two cold wind air knife, no need to heat). Keep after washing product can meet the requirement of the drying level, the upper air knife through controlling system adjust lifting, inside maximum opening width is 400mm, is convenience to adjust the air knife height and degrees, improve the drying effect. Equip high pressure blower 22kw, air intake through air filtering, large wind power, good drying effect, whole bellower is install on the top of the drying part, follow the washing and drying part lifting automatically, to ensure the after washing products can meet the requirement of the drying level. 6.The machine frame and others sheet metal parts which are not touching water, spray the senior mechanical paint after through the special technology processing. The paint with strong adhesion, bright durable surface.

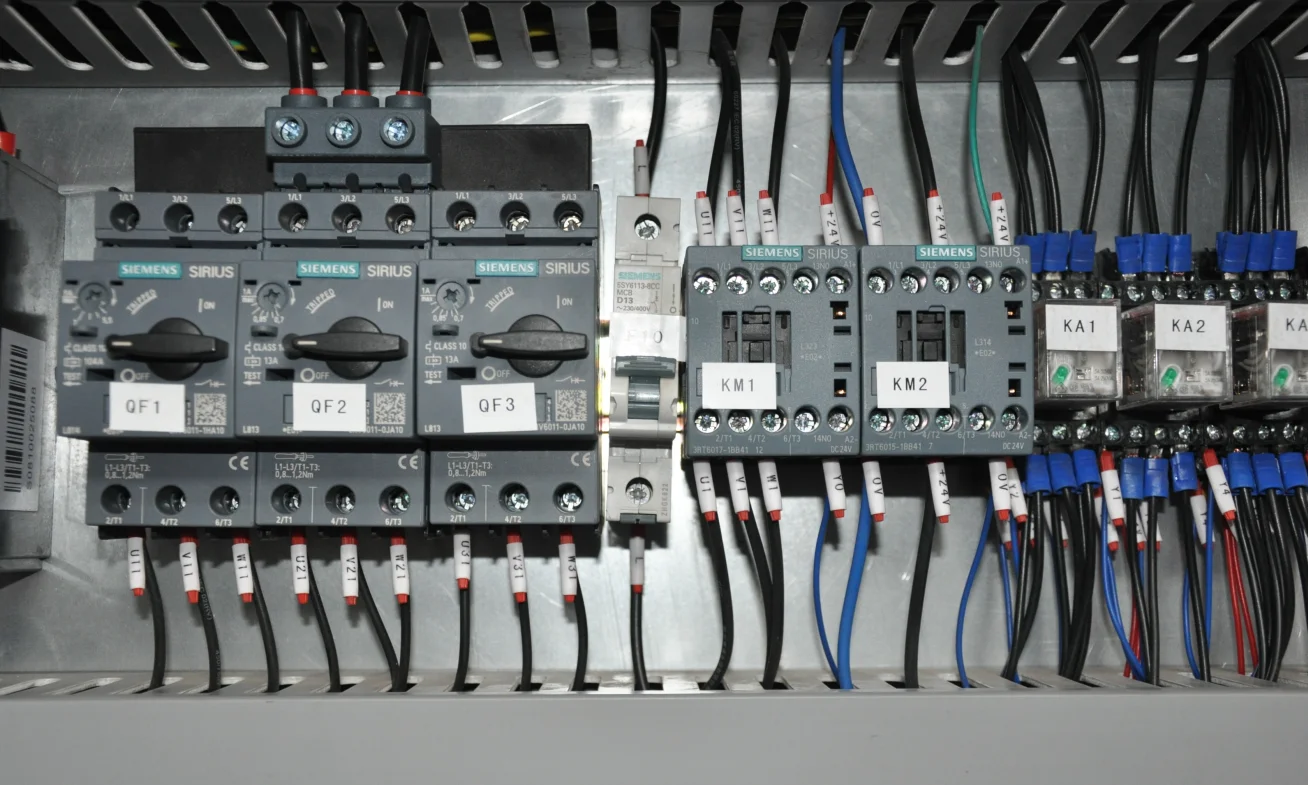

Using imported frequency converter and PLC control system, the speed of entering and exiting the glass can be adjusted freely, and the processing of clear glass can be maintained at a constant speed for a long time.

3 pairs of rubber rollers are used to press the glass sheets, which can achieve the effect of increasing the pressing strength in sequence, and the glass thickness tolerance is smaller than others suppliers.
