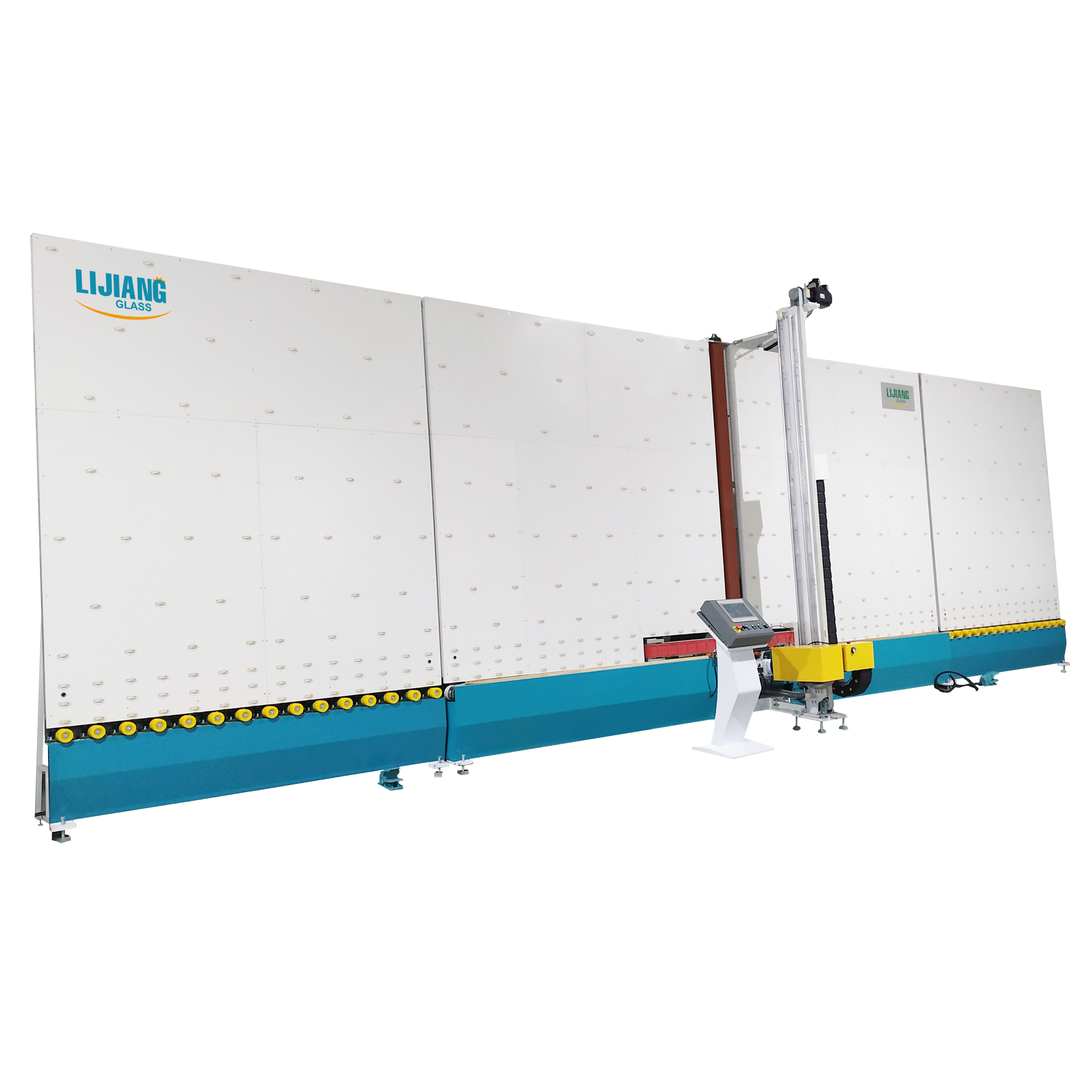

LJTJ2030 Automatic Insulating Glass Vertical Sealing Robot Machine
The LJTJ2030 Automatic Insulating Glass Vertical Sealing Robot Machine has the characteristics of full glass sealing edge, no bubbles, precise control of glue output, high production efficiency, low labor intensity, and consistent sealing effect standards, which are well received by users.
- Brand: LIJIANG Glass
- Shipping:
Learn More
LJTJ2030 Automatic Insulating Glass Vertical Sealing Robot Machine
Product Description
LJDM2545 Smart Vertical Edge Deleting Machine

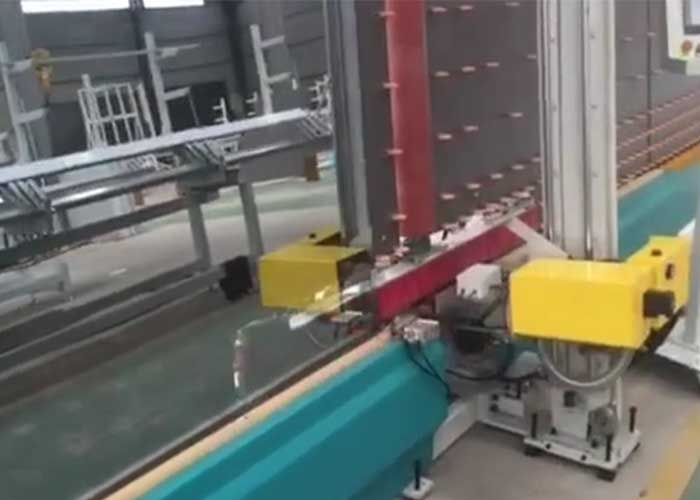

LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Advantages & Features
Benefits & Advantages
•Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
•4 sections, can storage glass
•Adopt timing belt, smooth transfer and accurate position

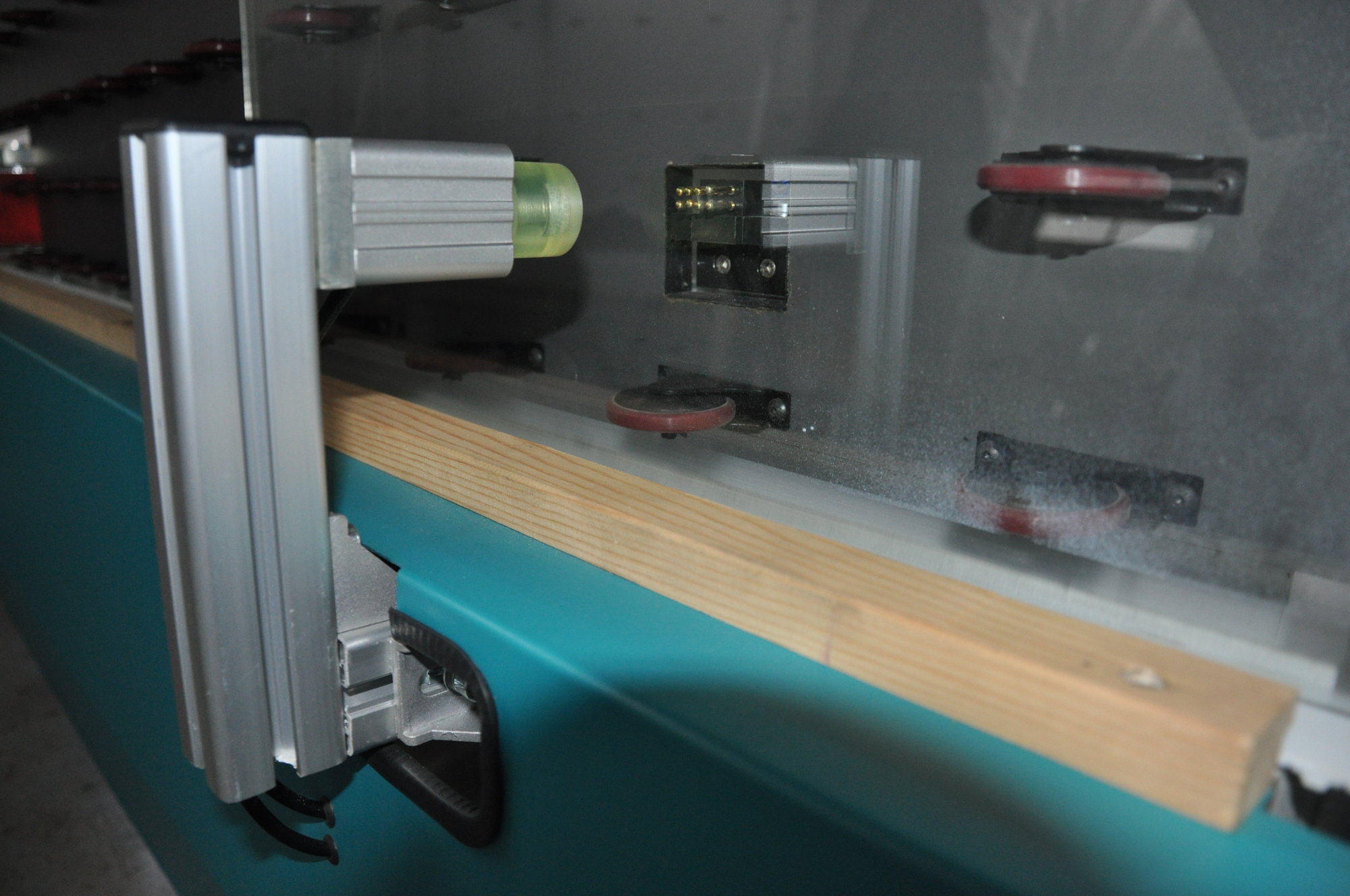

•Automatically repair glass corners with scraper and roller
•Automatically measure glass size, glue depth (30mm)
•Every auto-function is with manual operation
•Can coat special type of double glass
•Shape glass with optional edges, step glass, triple glass (Optional)
•One set of booster pump controls two groups of sealants (Optional)
•Can use silicone, polysulfide and silicone structural sealants
•Glue head is in the front of the machine, which is easy for coating step glass

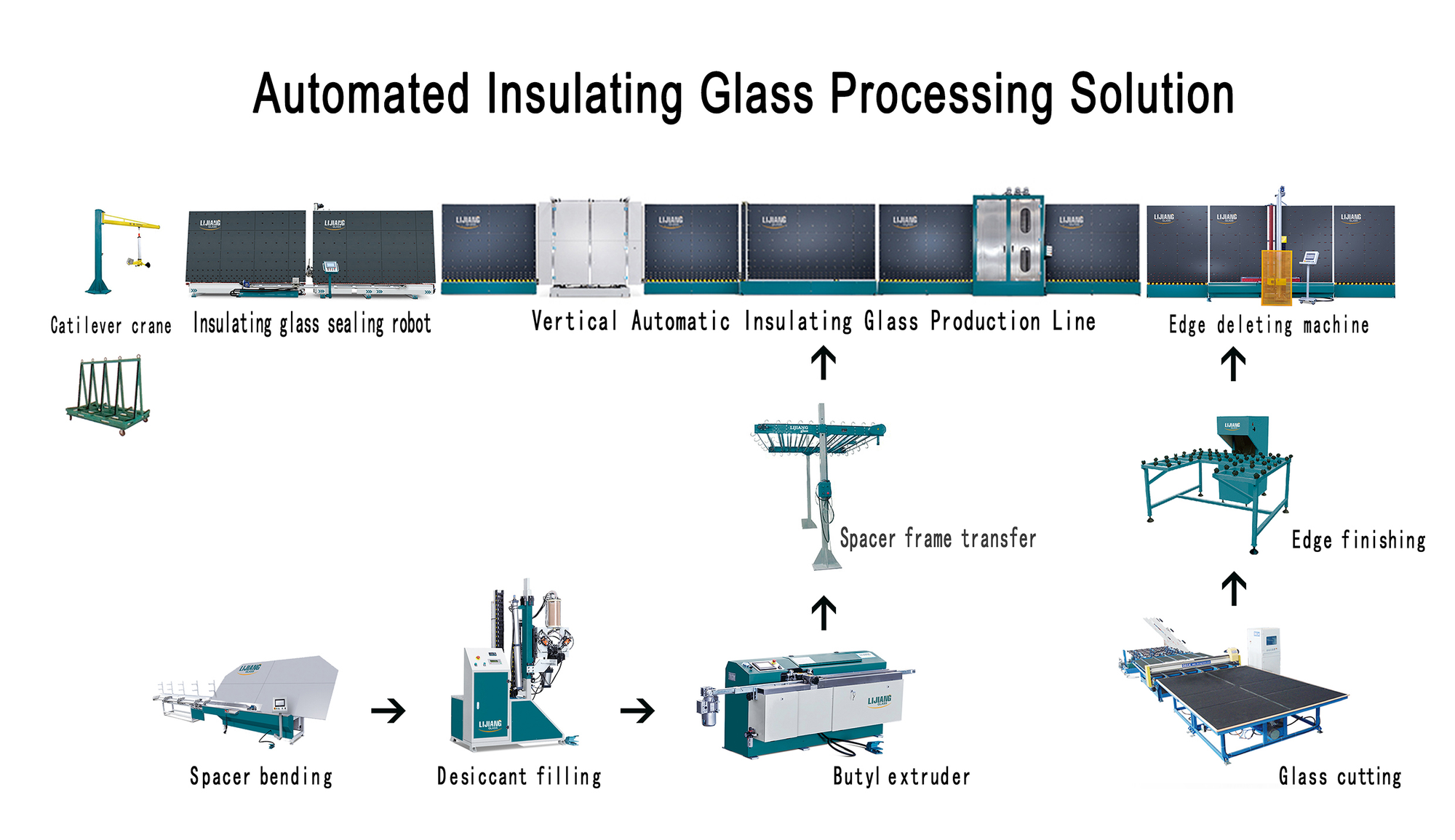

•Can be connected with insulating glass processing line
•With code scanning function （Optional）

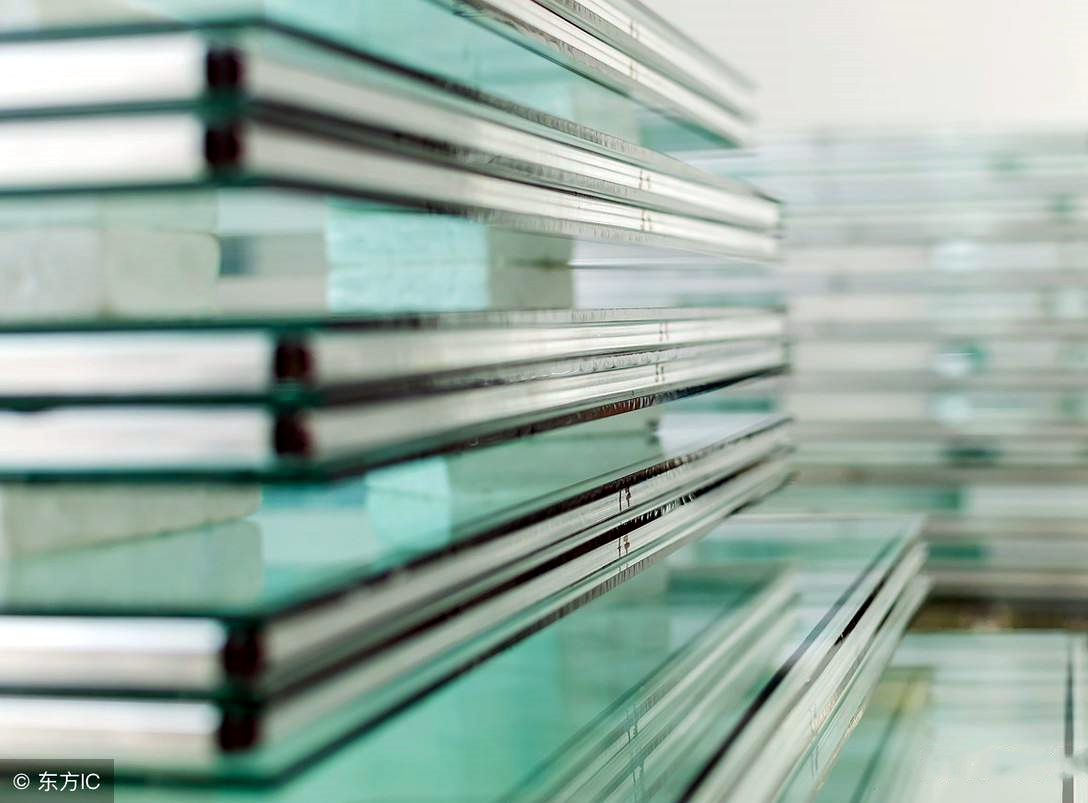

The Smooth Glue Surface
After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

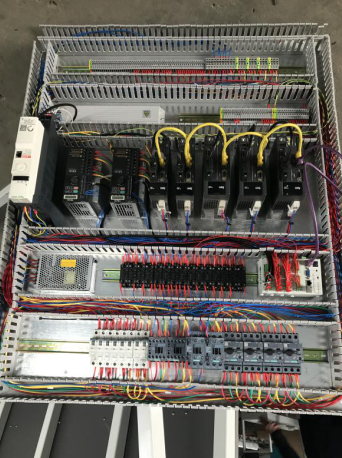

The High-precision Servo Control System
It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

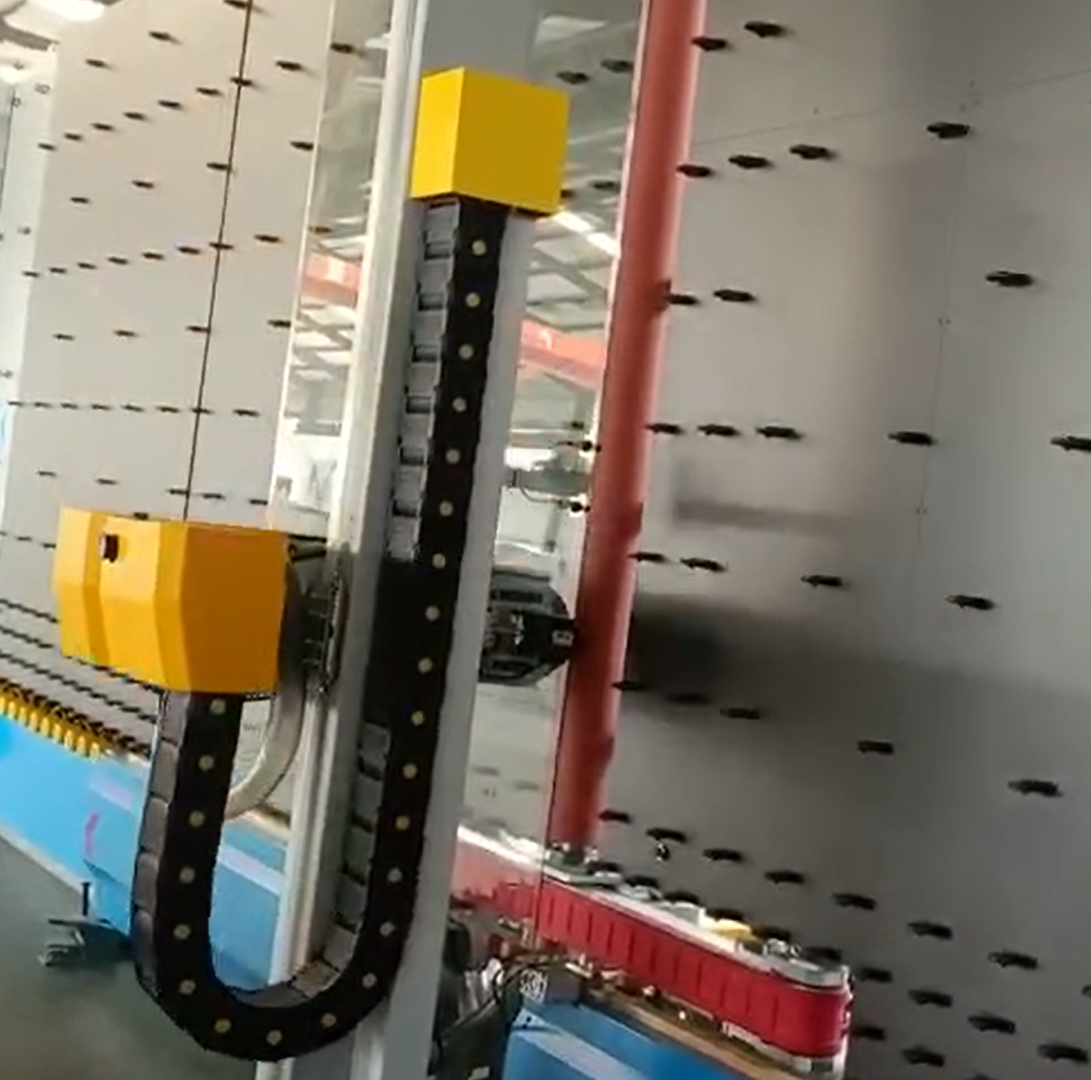

The Glass Coating
Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

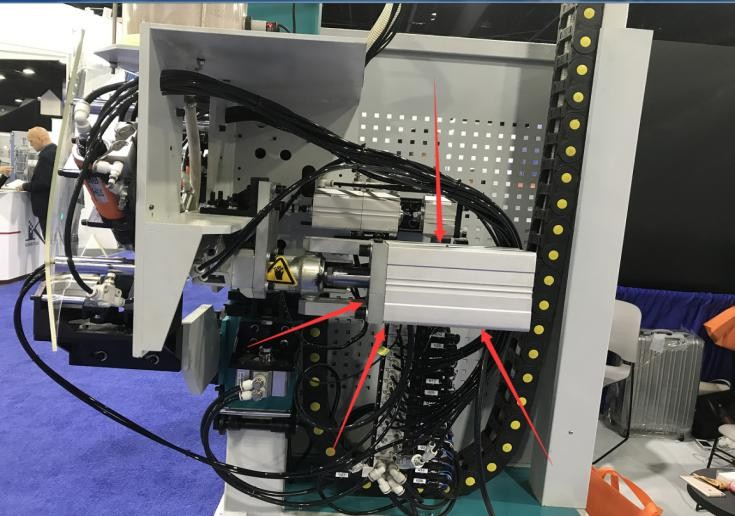

Glue Pump A and Glue Pump B
Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.
Main Technical Parameter
Item. | Spec. |
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 3.35KW |
Dimension | 9700×2500×3400mm |
Total weight | 3700KG |
Product name
Vertical Insulating Glass Sealing Robot
Working speed
5-40m/min
Min.glass size
400mm*370mm
Max.glass size
2000mm*3000mm
Squeeze pressure
35MPa
Air pressure
0.6-0.8MPa
Dimension(L*W*H)
6700mm*2500mm*3000mm
Voltage
380V or 220V 50Hz 3P
Power
15Kw
Insulating glass thickness
12-56mm
Weight
4300Kgs
Color
Customers' request

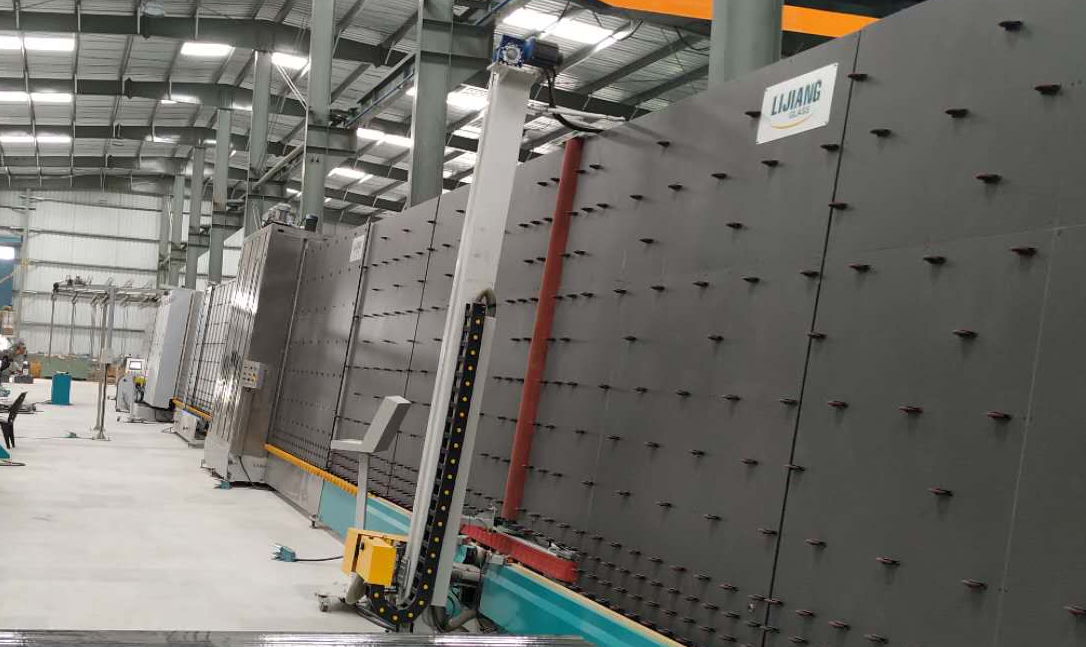

How many sections is the sealing robot equipment divided into? What are the advantages?
LIJIANG Glass Automatic Insulated Glass Sealing Robot Equipment is divided into four sections. Small pieces of glass can store one more piece of glass during the second sealing process of insulating glass, reducing the handling of upper and lower pieces and improving processing efficiency; what I learned is that the sealing line of other automatic processing equipment for insulating glass They are all three paragraphs.
The automatic sealing robot line can choose the front and rear devices of the sealing column. What is the difference?
Both the front and rear columns of the sealing robot line can be connected with the insulating glass production line to directly produce large and small pieces of glass. Compared with the sealing line at the front of the column, the sealing line at the rear of the column cannot be connected with the insulating glass production line.
When sealing the second glue for three-glass two-cavity insulating glass, should you use one-time sealing or two-time sealing?
The equipment can be sealed once or twice. The use of one-time sealing has higher requirements for the placement of spacers, and at the same time has higher requirements for the size and accuracy of spacers; generally speaking, the effect of one-time sealing is definitely not as good as that of two-time sealing, but the speed of two-time sealing is slow, which affects the overall processing efficiency.
