LJGZ2020 Automatic Insulating Glass Desiccant Filling Machine
Learn More

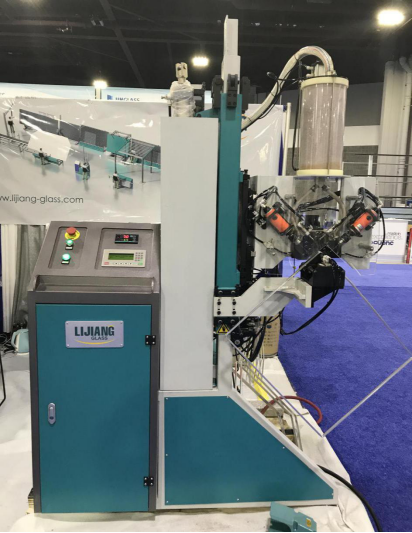

LJGZ2020 Automatic Insulating Glass Desiccant Filling Machine
Application
Automatic Insulating Glass Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
LJGZ2020 Desiccant Filling Machine
Main Feature
- Germany Siemens PLC control system
- Touching screen interface, simple and visible
- Fill for bending frame and connected frame
- Auto desiccant loading function
- Filling time can be adjusted
- Auto drilling, filling and sealing function.

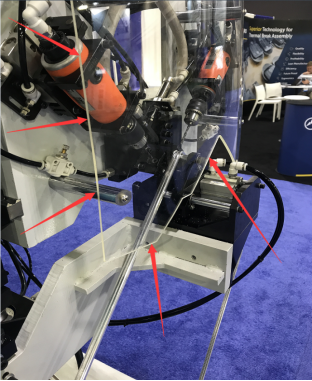

Protection device for machine head.

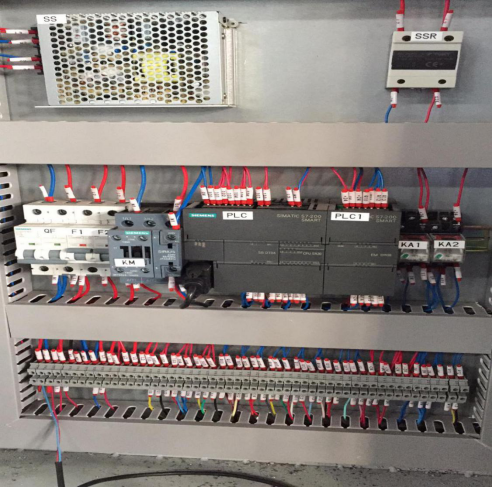

Electrical component are all Germany Brand-Siemens.

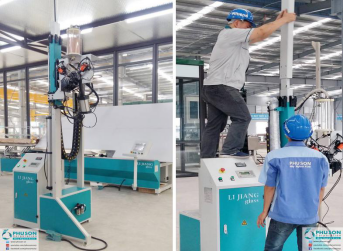

The height of machine could be adjusted according to the size of spacer frame.

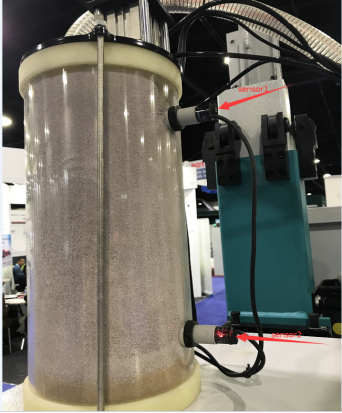

Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading)
Auto drilling, filling and sealing function.

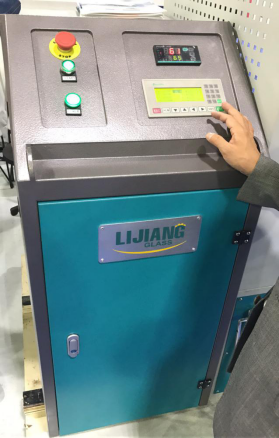

Touching screen interface, simple and visible; Filling time could be adjusted according to the size of spacer frame in the touch screen.

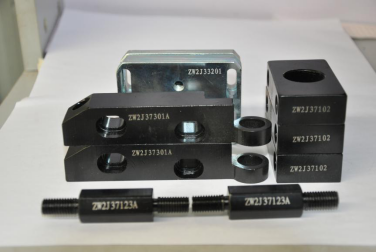

All spare parts have ID Number for offering the convenience in after sales service.

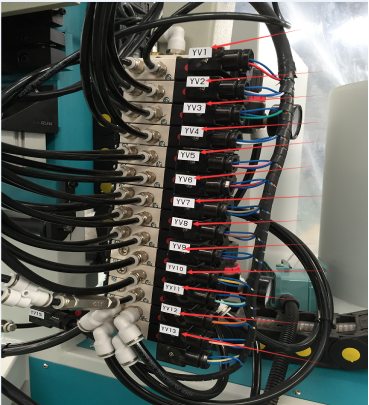

All the electrical wires have the ID number, it could match with specification, also it will be very easy for the further communication in the after sales service
Famous Brand
Name | Brand | Name | Brand |
PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
Lowvoltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
Guide | Taiwan TBI | Switch power | Taiwan TEND |
Main technical parameter
| Item. | Spec. |
Filling aluminum frame’s maximum size | 2000mm*2000mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Services
Pre-Sales Service
1. Free inquiry and consulting support.
2. Free sample-making support.
3. Manufacturing process inspection.
4. Free quotation.
5. Troubleshooting.
After-Sales Service
1. Offering the specifications for the entry-level glass deep-processing machine with 1 years warranty.
2. English software, user manual, and engineer guide.
3. 7/24 technical support by email or call, if you have any problems, we will help you to solve them within 12 hours.
4. During the warranty period, if any part is broken, we will provide it for free.
5. Free remote service and support, if it is necessary, our engineer will come to your country for training.
6. 7 working days to produce the machine, in the meanwhile, we will report the production process in time.
FAQs
1. Is it easy to operate for a beginner?
We provide an English manual or live video guide that will show how to set up and use the machine. Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.
2. How to choose the right entry-level glass deep-processing machine?
Yes, to give you a suitable entry-level insulating glass producing machine, please tell me the max working area, materials for processing, and the thickness for the materials to be cut. Then an affordable glass deep-processing machine will be recommended to fit your requirements.
3. If the glass deep-processing machine have any problem after I ordered it, what could I do?
3.1. Free parts will be sent to you in the warranty period if the machine has any problem.
3.2. Free after-sales service life for the machine, please feel free to contact us if you have any problems.
3.3. We will offer 7/24 free service and support by phone, WhatsApp, skype, and mail.
4. What about quality control?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure it can work very well before being out of the factory. The testing video and pictures will be available before delivery.
5. What about the MOQ?
Our MOQ is 1 set glass deep-processing machine. We could send the glass deep-processing machine to your country port directly, please tell us your port name. There will be the best shipping freight and machine price for you.
6. What about the payment terms?
6.1. 30% by T/T in advance, 70% by T/T before shipping.
6.2. L/C is acceptable, if the amount is big, please issue the draft for our confirmation at first.
7. What about the delivery terms?
We will arrange the delivery on the terms we both agreed upon after the confirmation by the buyer. For standard machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depending on the factory arrangement.
8. What about the packing?
Waterproof plastic film package with foam protection in each corner. Plywood case package with steel belt. It saves space as much as possible for container loading.
9. What about the documents after shipment?
After shipment, we will send original documents to you by DHL which include the packing list, commercial invoice, bill of landing, and other certificates as required by clients.
International Shipping Around the World
All the glass deep-processing machines can be shipped worldwide by sea, by air, or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
What is the correct way to use the Insulating Glass Molecular Sieves?
1. Special molecular sieves for insulating glass should be sealed and stored before use. If the packaging is found to be damaged, it cannot be used. If the package has been opened but has not been used up, please do not pack it yourself before using it.
2. Filling should be carried out in a dry and dust-free room.
3. Molecular sieves are strictly prohibited from being exposed to the air for a long time after opening the package. The process from filling to gluing and sheeting should be completed continuously in a short time. The aluminum partition frame filled with molecular sieves should be converted into insulating glass within 45 minutes.
4. There should be no air leakage on the four sides of the sealed insulating glass.
5. After the insulating glass is glued together, it is strictly prohibited to expose it to the sun.
6. The molecular sieve filling machine is preferably sealed.
All in all, the molecular sieves assembled in insulating glass must be regularly tested, dried, indoors dust-free, quickly assembled, and prevented from air leakage and exposure to the sun.
