LJCM2545 Automatic Vertical Low-E Glass Edge Deleting Machine
LIJIANG Glass LJCM2545 Automatic Vertical Low-E Glass Edge Deleting Machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily...
- Brand: LIJIANG Glass
- Shipping:
Learn More
LJCM2545 Automatic Vertical Low-E Glass Edge Deleting Machine
Product Description
LJDM2545 Smart Vertical Edge Deleting Machine
LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Advantages & Features
Benefits & Advantages
•Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
•4 sections, can storage glass
•Adopt timing belt, smooth transfer and accurate position
•Automatically repair glass corners with scraper and roller
•Automatically measure glass size, glue depth (30mm)
•Every auto-function is with manual operation
•Can coat double glass
•Shape glass with optional edges, step glass, triple glass (Optional)
•One set of booster pump controls two groups of sealants (Optional)
•Can use silicone, polysulfide and silicone structural sealants
•Glue head is in the front of the machine, which is easy for coating step glass
•Can be connected with insulating glass processing line
•With code scanning function （Optional）

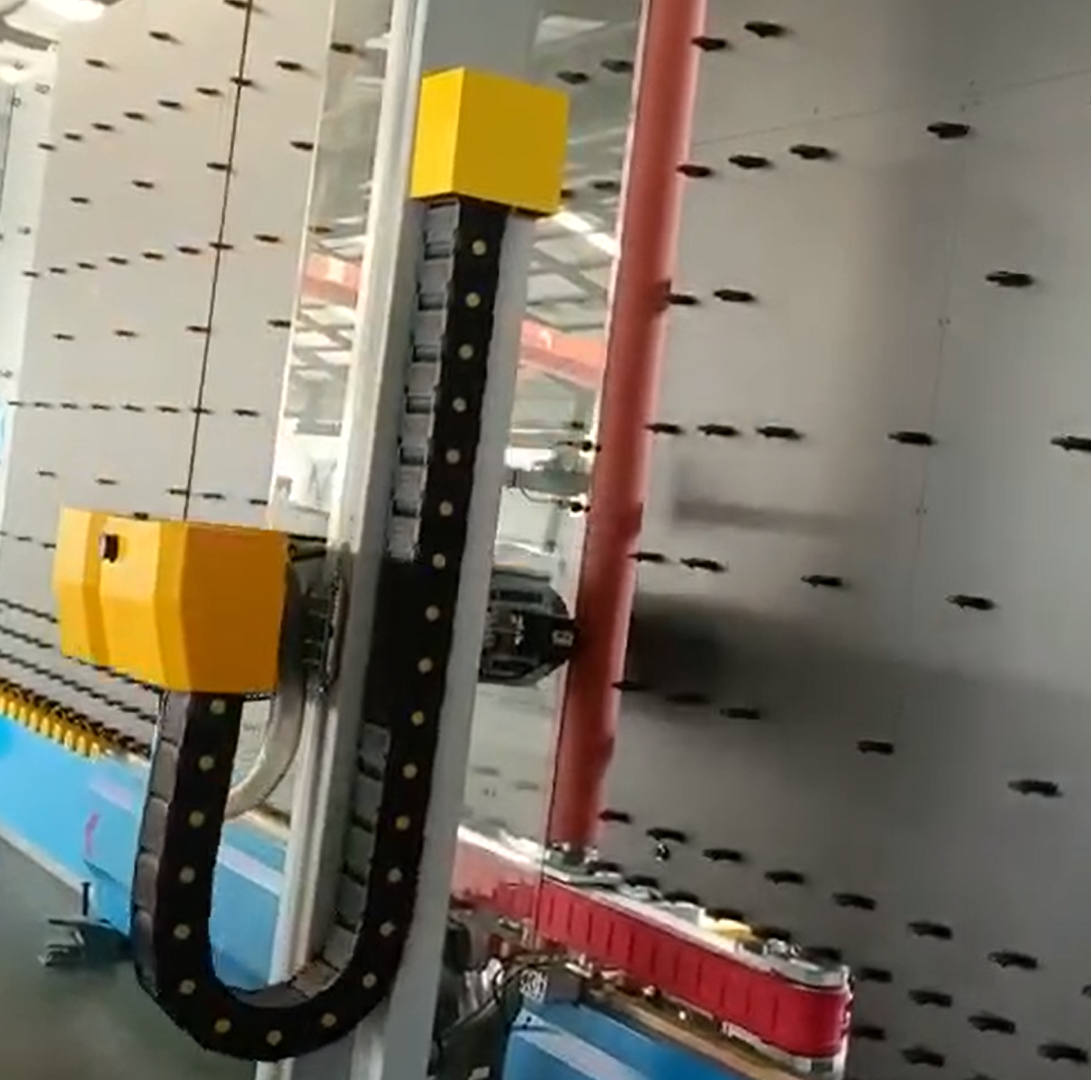

The Smooth Glue Surface
After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

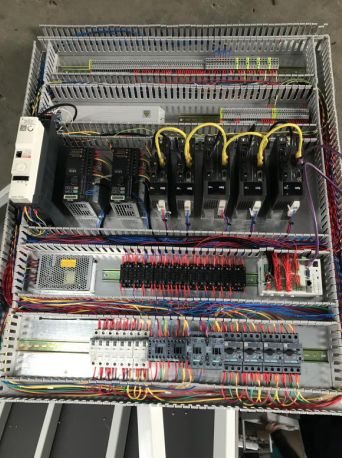

The High-precision Servo Control System
It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

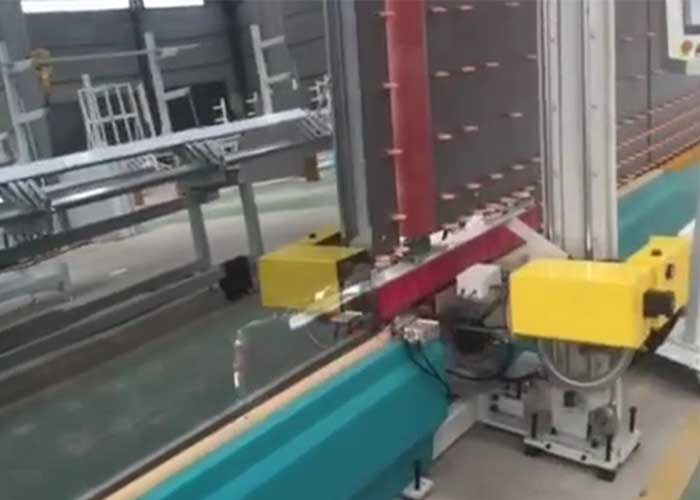

The Glass Coating
Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

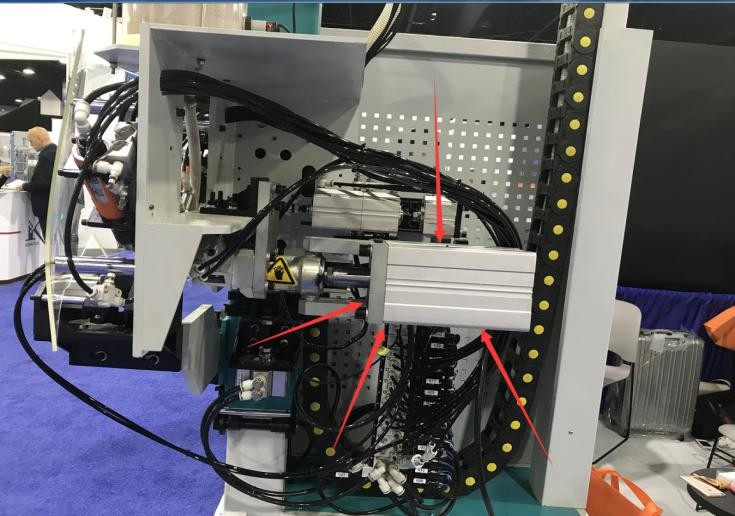

Glue Pump A and Glue Pump B
Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.
Main Technical Parameter
Item. | Spec. |
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 3.35KW |
Dimension | 9700×2500×3400mm |
Total weight | 3700KG |
Services
Pre-Sales Service
1. Free inquiry and consulting support.
2. Free sample-making support.
3. Manufacturing process inspection.
4. Free quotation.
5. Troubleshooting.
After-Sales Service
1. Offering the specifications for the entry-level glass deep-processing machine with 1 years warranty.
2. English software, user manual, and engineer guide.
3. 7/24 technical support by email or call, if you have any problems, we will help you to solve them within 12 hours.
4. During the warranty period, if any part is broken, we will provide it for free.
5. Free remote service and support, if it is necessary, our engineer will come to your country for training.
6. 7 working days to produce the machine, in the meanwhile, we will report the production process in time.
FAQs
1. Is it easy to operate for a beginner?
We provide an English manual or live video guide that will show how to set up and use the machine. Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.
2. How to choose the right entry-level glass deep-processing machine?
Yes, to give you a suitable entry-level insulating glass producing machine, please tell me the max working area, materials for processing, and the thickness for the materials to be cut. Then an affordable glass deep-processing machine will be recommended to fit your requirements.
3. If the glass deep-processing machine have any problem after I ordered it, what could I do?
3.1. Free parts will be sent to you in the warranty period if the machine has any problem.
3.2. Free after-sales service life for the machine, please feel free to contact us if you have any problems.
3.3. We will offer 7/24 free service and support by phone, WhatsApp, skype, and mail.
4. What about quality control?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure it can work very well before being out of the factory. The testing video and pictures will be available before delivery.
5. What about the MOQ?
Our MOQ is 1 set glass deep-processing machine. We could send the glass deep-processing machine to your country port directly, please tell us your port name. There will be the best shipping freight and machine price for you.
6. What about the payment terms?
6.1. 30% by T/T in advance, 70% by T/T before shipping.
6.2. L/C is acceptable, if the amount is big, please issue the draft for our confirmation at first.
7. What about the delivery terms?
We will arrange the delivery on the terms we both agreed upon after the confirmation by the buyer. For standard machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depending on the factory arrangement.
8. What about the packing?
Waterproof plastic film package with foam protection in each corner. Plywood case package with steel belt. It saves space as much as possible for container loading.
9. What about the documents after shipment?
After shipment, we will send original documents to you by DHL which include the packing list, commercial invoice, bill of landing, and other certificates as required by clients.
International Shipping Around the World
All the glass deep-processing machines can be shipped worldwide by sea, by air, or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
Name
Low-E Film Deleting Machine
Squeeze pressure
32MPa
Speed
0-15m/min
Usage
Removing the Low-E Glass Film
Max. glass size
2500mm*4500mm
Min. glass size
300mm*500mm
PLC System
Germany Siemens
Glass thickness
3-15mm
Air pressure
≥0.6MPa
Dimension(L*W*H)
8700*2000*3500mm
Color
Customers' Request
What is the maximum and minimum size of your equipment for film removal? What is the required range of glass thickness?
The minimum size that can be processed by the Automatic Low-E Glass Film Removing Machine is 350mm*500mm, the maximum size is 2500mm*4500mm, and the thickness of the glass that can be processed can reach 3mm-15mm.
What direction can the Low-E Glass Film Removal Machine be divided into?
LIJIANG Glass Automatic Low-E Glass Film Removal Machine can enter and exit the glass in four directions (up, down, left, and right), and the direction in which Low-E Glass enters and exits can be selected by the touch screen.
How many sections is the Low-E Glass Film Removing Machine divided into? What is the size of each segment?
LIJIANG Glass Low-E Glass Film Removing Machine is divided into three sections, the length of the first section and the third section are 2.2 meters respectively, mainly used for the input and output of Low-E glass, and the storage of the third piece of glass, the length of the middle section is 5.3 meters, mainly Film removal for Low-E Glass.
What are the advantages and disadvantages of the Low-E Glass Film Remover Machine?
The Vertical Low-E Glass Film Removal Machine can be used in connection with the automatic insulating glass production line, which saves labor and has a good film removal effect. The Low-E glass has good flatness after film removal, and can be selected for processing large-format Low-E glass.
The disadvantage is that it increases the length of the entire production line and occupies a large area. However, compared with the high manual wages and the uncertainty of manual operation, it would be a good choice to choose automated equipment.
In addition, compared with automatic film removal, manual film removal has poor film removal effect and slow speed. Compared with Low-E Glass, other glass has to remove the film before tempering, because the heating time of white glass and Low-E Glass is different during tempering, which will cause glass deformation.
The disadvantage is that it increases the length of the entire production line and occupies a large area. However, compared with the high manual wages and the uncertainty of manual operation, it would be a good choice to choose automated equipment.
In addition, compared with automatic film removal, manual film removal has poor film removal effect and slow speed. Compared with Low-E Glass, other glass has to remove the film before tempering, because the heating time of white glass and Low-E Glass is different during tempering, which will cause glass deformation.
